AirCom真空控制閥EVR
簡單介紹
EVR大流量真空控制閥口徑1/4“-3”，控制真空度-100kpa——0，流量在0-4200L/m之間都有出色的控制表現，*大Cv值60。采用超大膜片控制真空度，真空泵吸力的變化對受控真空無影響。控制方式可選擇直接手動控制或遠程手動控制或遠程比例閥電動控制。
大流量真空控制閥的詳細介紹
適用介質…………各種氣體
真空范圍…………相對壓力0— -100kpa（0— -1bar） 優良壓力0—100kpa
控制方式…………直接手動旋鈕調節（高精度20圈調節），遠程手動調節，遠程比例閥電子調節
氣量消耗…………無常量泄放
流量………………0—4200L/m，詳細見選型表
安裝方式…………下游安裝（真空控制閥安裝于受控真空與真空泵之間）
自排放……………為保證獲得*大真空度，無自排放功能。系統應留有進氣口用于降低真空度時進氣。
歡迎垂詢漢達森品牌專員吳亞男。
接口口徑…………1/4"—3” NPT內螺紋
壓力表接口………無壓力表接口
材質
閥體………………PVC
膜片………………PTFE
其他可選
無手動調節…………EVR-..J（適用于遠程手動調節或遠程比例閥電子調節，具體組合方式請咨詢本公司）
不銹鋼閥體…………EVR-..S（先導氣源接口1/4"）
碳鋼閥體……………EVR-..C（先導氣源接口1/4"）
增強氟橡膠膜片……EVR-..V
接口G螺紋………… EVR-..G
法蘭接口……………EVR-..F
VCR接口…………… EVR-..SR（**不銹鋼閥體，口徑1/4"—1”）
大流量真空控制閥EVR產品特征
控制真空壓力范圍從0— -100kpa可調，達到需要的真空度時受控真空容器內真空度不再降低
接液部件閥體材質PVC或不銹鋼，膜片材質特氟龍或加強氟橡膠，其他部件不接液，耐腐蝕性氣體
口徑從1/4"至3”，超大流量
歡迎垂詢漢達森品牌專員吳亞男。
先導式原理，超大膜片，感應靈敏**，真空泵吸力大小的變化對真空容器內部無影響
調節方式有就地手動調節和遠程調節
下游安裝方式杜絕外部氣體進入真空系統內
為獲得*大真空度，EVR無自排放口（泄氣口），當真空度從高向低調時，需要從系統上的進氣口進氣
AirCom 41733400 工件夾具
AirCom SB-M 離心通風機
AirCom BFS250/20-61KBT5Z+488 潛水泵
AirCom THT42 溫度計
AirCom 4WRKE32R3-400L-33/6EG24K31/F1D3M 油壓傳動閥
AirCom SV1-10/32/315/6 油壓傳動閥
AirCom AW_84TE_Ind_PCM16_6620_1_5W_24_U#HG_70
Aircom pneumatic GmbH 72983 Radsatz SDN160 齒輪箱
Aircom pneumatic GmbH ELSA60 No lubrication cycle 聯軸器
AirCom調壓器8069940-01-1
AirCom調壓器8069949-01-1
AirCom壓力開關DS16-BVF3.5
AirCom高壓減壓閥R280-08E
AirCom調壓器0,5-25BAR R280-08E
AirCom調壓閥D400-03BNV
AirCom調壓閥D400-03CNV
AirCom調壓閥D400-04CNV
AirCom調壓閥D8A-02
AirCom調壓閥R230-020
AirCom調壓器R160-08C
AirCom調壓器R160-08D
AirCom流量計PVM25-45
Aircom調壓器R280-08E 0,5-25Bar
AIRCOM電磁閥
AirCom壓力調節器
AirCom R119-02A
AirCom R119-02B
AirCom R119-02C
AirCom R119-02D
AirCom R119-03A
AirCom R119-03B
AirCom R119-03C
AirCom R119-03D
AirCom R119-04A
AirCom R119-04B
AirCom R119-04C
AirCom R119-04D
AirCom RH10-02A
AirCom RH10-02B
AirCom RH10-02C
AirCom RH10-02D
AirCom RH10-02E
AirCom RH10-02F
AirCom RH10-030
AirCom RH10-03B
AirCom RH10-03C
AirCom RH10-03D
AirCom RH10-03E
AirCom RH10-03F
AirCom RH10-A30
AirCom RH10-A3B
AirCom RH10-A3C
AirCom RH10-A3D
AirCom RH10-A3E
AirCom RH10-A3F
AirCom RH10-06A
AirCom RH10-06B
AirCom RH10-06C
AirCom RH10-06D
AirCom RH10-06E
AirCom RH10-08A
AirCom RH10-08B
AirCom RH10-08C
AirCom RH10-08C
AirCom RH10-08D
AirCom RH10-08F
AirCom RH10-10A
AirCom RH10-10B
AirCom RH10-10C
AirCom RH10-10D
AirCom R120-01A
AirCom R120-01B
AirCom R120-01C
AirCom R120-01E
AirCom R120-A2A
AirCom R120-A2B
AirCom R120-A2C
AirCom R120-A2E
AirCom R120-02A
AirCom R120-02B
AirCom R120-02C
AirCom R120-02E
AirCom R120-02F
AirCom R120-02G
AirCom R120-03A
AirCom R120-03B
AirCom R120-03C
AirCom R120-03E
AirCom R120-03F
AirCom R120-03G
AirCom R120-04A
AirCom R120-04B
AirCom R120-04C
AirCom R120-04E
AirCom R120-04F
AirCom R120-04G
AirCom R120-06A
AirCom R120-06B
AirCom R120-06C
AirCom R120-06E
AirCom R120-06F
AirCom R120-06G
AirCom R120-08A
AirCom R120-08B
AirCom R120-08C
AirCom R120-08E
AirCom R120-08F
AirCom R120-08G
AirCom R120-12A
AirCom R120-12B
AirCom R120-12C
AirCom R120-12E
AirCom R120-12F
AirCom R120-12G
AirCom R120-B6A
AirCom R120-B6B
AirCom R120-B6C
AirCom R120-B6E
AirCom R120-B6F
AirCom R120-B6G
AirCom R120-16AK
AirCom R120-16CK
AirCom R120-16DK
AirCom R120-24AKF
AirCom R120-24DKF
AirCom R120-32AKF
AirCom R120-32CKF
AirCom R120-32DKF
AirCom R286-02C
AirCom R286-02E
AirCom R286-02F
AirCom R286-02G
AirCom R286-03C
AirCom R286-03E
AirCom R286-03F
AirCom R286-03G
AirCom R286-04C
AirCom R286-04E
AirCom R286-04F
AirCom R286-04G
AirCom R286-08C
AirCom R286-08E
AirCom R286-08F
AirCom R286-08G
AirCom RH10-02A
AirCom RH10-02B
AirCom RH10-02C
AirCom RH10-02D
AirCom RH10-02E
AirCom RH10-02F
AirCom RH10-030
AirCom RH10-03B
AirCom RH10-03C
AirCom RH10-03D
AirCom RH10-03E
AirCom RH10-03F
AirCom RH10-A30
AirCom RH10-A3B
AirCom RH10-A3C
AirCom RH10-A3D
AirCom RHB-02A
AirCom RHB-02B
AirCom RHB-02C
AirCom RHB-02D
AirCom RHB-02E
AirCom RHB-02F
AirCom PRE1-IA1
AirCom PRE1-UA1
AirCom PRE1-IA2
AirCom PRE1-UA2
AirCom PRE1-I02
AirCom PRE1-U02
AirCom PRE1-I05
AirCom PRE1-U05
AirCom PRE1-I06
AirCom PRE1-U06
AirCom PRE1-I08
AirCom PRE1-U08
AirCom PRE2-IV1
AirCom PRE2-UV1
AirCom PRE2-I06V1
AirCom PRE2-U06V1
AirCom PRE2-I10V1
AirCom PRE2-U10V1
AirCom PRE2-I01
AirCom PRE2-U01
AirCom PRE2-I02
AirCom PRE2-U02
AirCom PRE2-I06
AirCom PRE2-U06
AirCom PRE2-I10
AirCom PRE2-U10
AirCom PRE2-I16
AirCom PRE2-U16
M系列DL型操作原理
雙作用，正排量M系列泵有兩個交替的泵室。 驅動單元的壓縮空氣通過控制閥依次進入每個隔膜的后部，從而將介質從交替的泵送腔室中排出。 在所示的泵中，右泵腔處于吸入位置。 隔膜的縮回產生了真空，泵送的介質流入腔室。 左隔膜由壓縮空氣支撐，同時置換了該腔室中存在的介質。 由于兩個膜片通過一個共用的活塞桿連接，因此始終在一個腔室中發生吸力，而在另一個腔室中發生排氣。
DEPA型號：歡迎垂詢漢達森品牌專員吳亞男。
40多年來，DEPA氣動隔膜泵一直是全球惡劣環境和嚴苛應用條件下可靠性和效率的支柱。德國DEPA系列氣動隔膜泵這一高質量的正向位移泵一直應用于各個工業領域。每天，即使是在惡劣的應用條件下，這些泵在世界各地以其可靠性和性發揮著作用。在泵的生產過程中，各個工業領域對泵的質量要求、操作和維護泵的方便性一直是我們的zui高準則。先進的生產工藝、保證質量的檢測系統以及DIN EN ISO29001認證，保證了DEPA產品的高質量。德國DEPA氣動隔膜泵系列介紹
DEPA氣動雙隔膜泵系列DH-TP / TPL
DH-TP和TPL泵分別由PTFE和PTFE導電外殼材料制成。通過更新和優化的設計，泵通過其簡單，堅固和堅固的結構而與眾不同。通用法蘭設計（JIS，ANSI和DIN組合）可實現靈活的全球部署。
DEPA氣動隔膜泵，非金屬泵，P系列
氣動隔膜泵，單個車身部件由聚丙烯，PVDF或PTFE制成。
DEPA氣動隔膜泵，鑄造金屬泵，M系列
DEPA?氣動隔膜泵專為磨料，含固體和粘性介質的平穩轉移而開發。
DEPA氣動雙隔膜泵，不銹鋼泵，L系列，DL-SLV / SUV（食品系列）
L系列泵 - DL-SLV和DL-SUV - 由拋光不銹鋼制成，表面光潔度高達Ra *3.2μm，并獲得FDA（食品和藥品管理局）批準的彈性體。DL-SLV / SUV型適用于關鍵食品應用。
DEPA氣動雙隔膜泵，不銹鋼泵，L系列，DL-SFS / SF型（食品線）
L系列泵 - DL-SFS型和DL-SF型 - 由電拋光鑄造不銹鋼制成，表面光潔度高達Ra *3.2μm，并獲得FDA（食品和藥品管理局）批準的彈性體。DL-SF / SFS型適用于一般食品應用。
歡迎垂詢漢達森品牌專員吳亞男。
DEPA氣動隔膜泵，不銹鋼泵，L系列無菌生產線，由EHEDG認證
允許在無菌過程中的各種應用，特別是在制藥和保健行業。
DEPA氣動隔膜泵，高壓泵，DB系列
DEPA氣動隔膜泵是壓力保持操作的一種經濟有效的替代方案，因為省去了任何精細和昂貴的閉環或開環控制。
DEPA氣動隔膜泵，附件/自動化
DEPA氣動隔膜泵可為各種應用配備各種附件，即使在自動化領域也是如此。
DEPA DH新一代氣動雙隔膜泵
DEPA DD新一代氣動雙隔膜泵系列DH15，DH25，DH40，DH50和DH80由工業應用開發的鑄鋁制成。
DEPA DH新一代鑄造不銹鋼氣動雙隔膜泵
DEPA DD新一代氣動雙隔膜泵系列DH15，DH25，DH40，DH50和DH80由工業應用開發的鑄鋁制成。
DEPA DB40-CA-DEE
DEPA DL40-SA-TTT
DEPA DL50-AA-TTT
DEPA DL50-AA-EEE
DEPA DL80-AA-TTT
DEPA DL25-PP-TTT
DEPA DP 40
DEPA DP 50
DEPA DP 80
DEPA DP 125
DEPA DB 25
DEPA DB 40
DEPA DB 50
DEPA DZ 15
DEPA DZ 25
DEPA DZ 40
DEPA DZ 50
DEPA DH15
DEPA DH25
DEPA DH40
DEPA DH50
DEPA DL 15
DEPA DL 25
DEPA DL 40
DEPA DL 50
DEPA DL 80
co-ax同軸閥MK / FK 32 DR
特性
端口 螺紋 G 1 1/4 - G 1 1/2
法蘭 PN 16/40
功能 NC
壓力范圍 0-16 / 0-40 bar
A B max. 40 bar
B A max. 16 bar
A C max. 40 bar
C A max. 16 bar
KV值 A B 14,1 m³/h
A C 8,9 m³/h
介質 氣態 液態 高粘稠 凝膠狀 高污染
歡迎垂詢漢達森品牌專員吳亞男。
流向 見壓力范圍
開關周期 120 1/min
開關時間 打開 440 ms
關閉 250 ms
介質溫度 DC -20 °C — +100 °C
AC -20 °C — +100 °C
環境溫度 DC -20 °C — +80 °C
AC -20 °C — +80 °C
重量 MK 18,0 kg
FK 22,0 kg
標稱電壓 Un 24 V DC
Un 230 V 40-60 Hz AC
驅動 DC 直流電磁鐵
AC 內置式整流器的直流電磁鐵
絕緣等級 H 180 °C
防護等級 IP65
負載率 ED 100%
連接 按DIN EN175301-803標準的插頭, 形式A 4個位置X90°, 電線直徑 6-8 mm
歡迎垂詢漢達森品牌專員吳亞男。
閥門的設計是基于介質和工況的要求.這些因素可能導致設計、密封材料和特性與通用參數表上的規格有所不同.
coax電磁閥
coax氣動閥
coax壓力控制閥
coax插裝閥
coax真空閥
主要型號
coax同軸閥MK10
coax同軸閥MK15/FK15
coax同軸閥MK20/FK20
coax同軸閥MK25/FK25
coax同軸閥MK32/FK32
co-ax MK10
co-ax MK15
co-ax MK20
co-ax MK25
co-ax MK32
co-ax MK40
co-ax MK50
co-ax FK15
co-ax FK20
co-ax FK25
產品型號
NUOVAFIMA MS1(01.01)
NUOVAFIMA MGS10(01.10)
NUOVAFIMA MS4(01.04)
NUOVAFIMA MGS18
NUOVAFIMA MGS20
NUOVAFIMA MGS5
NUOVAFIMA MGS11
NUOVAFIMA SP OM
NUOVAFIMA MN17
NUOVAFIMA MN17/L
NUOVAFIMA MN14
NUOVAFIMA MGS7
NUOVAFIMA MCE10-18
NUOVAFIMA MCE20
NUOVAFIMA 01.10DS40-50
NUOVAFIMA 01.01DS150
NUOVAFIMA DS50
NUOVAFIMA DS63
NUOVAFIMA DS100
NUOVAFIMA (EN837)
NUOVAFIMA 01.18
NUOVAFIMA DS40-50
NUOVAFIMA 01.18
NUOVAFIMA DS63
NUOVAFIMA 01.18DS100-15
NUOVAFIMA 01.20DS100-15
NUOVAFIMA 01.19DS100-10
NUOVAFIMA 01.21DS100-15
NUOVAFIMA 01.05-06DS125
NUOVAFIMA 01.M3DS150
NUOVAFIMA 01.M1-M2DS100
NUOVAFIMA MN9
NUOVAFIMA MGS12
NUOVAFIMA MN12
NUOVAFIMA MGS13
NUOVAFIMA MN20
NUOVAFIMA MN21
NUOVAFIMA MN14
NUOVAFIMA 3.10
NUOVAFIMA 3.20
NUOVAFIMA 3.25
NUOVAFIMA 3.26
NUOVAFIMA 3.27
NUOVAFIMA 3.28
NUOVAFIMA 3.29
NUOVAFIMA 3.30
NUOVAFIMA 3.40-
NUOVAFIMA 3.293.45
NUOVAFIMA 3.293.48-
NUOVAFIMA 3.293.49
NUOVAFIMA 3.29MGS9/1B-1A-1AS
NUOVAFIMA 3.29MGS9/111
NUOVAFIMA 3.29MGS9/MINI
NUOVAFIMA 3.29MGS9/SA
NUOVAFIMA 3.29
NUOVAFIMA 3.29
NUOVAFIMA 3.29MGS9/AL
NUOVAFIMA 3.29MGS9/R
NUOVAFIMA 3.29MGS9/367
NUOVAFIMA 3.29 MGS9/3A
NUOVAFIMA 3.29 MGS9/3B
NUOVAFIMA 3.29MGS9/6-5-4
NUOVAFIMA 3.2904.1BO
NUOVAFIMA 3.290
NUOVAFIMA 3.294.6WO
NUOVAFIMA 3.29MP4/5-4/7
NUOVAFIMA 3.29 MP4/8-4/9
NUOVAFIMA 3.29 MP5TB06
NUOVAFIMA 3.2906.TB
NUOVAFIMA 3.2906.TG
NUOVAFIMA 3.2906.V8
NUOVAFIMA 3.29
NUOVAFIMA 3.29 06.TB8DS100
NUOVAFIMA 3.29MT18-18/3
NUOVAFIMA 3.29 MTOM
NUOVAFIMA 3.29ATM/N
NUOVAFIMA 3.29PA6 222-2
NUOVAFIMA 3.29TB
co-ax FK32
co-ax FK40
co-ax FK50
co-ax FK65
co-ax FK80
co-ax MK10DR
co-ax MK15DR
co-ax MK20DR
co-ax MK25DR
co-ax MK32DR
co-ax MK40DR
co-ax MK50DR
co-ax FK15DR
co-ax FK20DR
co-ax FK25DR
co-ax FK32DR
co-ax FK40DR
co-ax FK50DR
co-ax FK65DR
co-ax FK80DR
co-ax CFM08
co-ax MCF08
co-ax VMK10
co-ax VMK15
co-ax VMK20
co-ax VMK25
co-ax VMK32
co-ax VMK40
co-ax VMK50
co-ax VFK15
co-ax VFK20
co-ax VFK25
co-ax VFK32
co-ax VFK40
co-ax VFK50
co-ax VMK10DR
co-ax VMK15DR
co-ax VMK20DR
co-ax VMK25DR
co-ax VMK32DR
co-ax VMK40DR
co-ax VMK50DR
co-ax VFK15DR
co-ax VFK20DR
co-ax VFK25DR
co-ax VFK32DR
co-ax VFK40DR
co-ax VFK50DR
co-ax VSV-M40
co-ax VSV-M50
co-ax VSV-F40
co-ax VSV-F50
co-ax VSV-F65
co-ax VSV-F80
co-ax VSV-F100
co-ax VSV-F125
co-ax VSV-F150
co-ax VSV-F200
co-ax VSV-F250
co-ax VSV-M40DR
co-ax VSV-M50DR
co-ax VSV-F40DR
co-ax VSV-F50DR
co-ax VSV-F65DR
co-ax VSV-F80DR
co-ax VSV-F100DR
co-ax VSV-F125DR
co-ax VSV-F150DR
co-ax FCF-K65
co-ax FCF-K80
co-ax FCF-K100
co-ax FCF-K125
co-ax FCF65
coax電磁閥
coax氣動閥
coax壓力控制閥
coax插裝閥
coax真空閥
主要型號
coax同軸閥MK10
coax同軸閥MK15/FK15
coax同軸閥MK20/FK20
coax同軸閥MK25/FK25
coax同軸閥MK32/FK32
co-ax MK10
co-ax MK15
co-ax MK20
co-ax MK25
co-ax MK32
co-ax MK40
co-ax MK50
co-ax FK15
co-ax FK20
co-ax FK25
co-ax FK32
co-ax FK40
co-ax FK50
co-ax FK65
co-ax FK80
co-ax MK10DR
co-ax MK15DR
co-ax MK20DR
co-ax MK25DR
co-ax MK32DR
co-ax MK40DR
co-ax MK50DR
co-ax FK15DR
co-ax FK20DR
co-ax FK25DR
co-ax FK32DR
co-ax FK40DR
co-ax FK50DR
co-ax FK65DR
co-ax FK80DR
co-ax CFM08
co-ax MCF08
co-ax VMK10
co-ax VMK15
co-ax VMK20
co-ax VMK25
co-ax VMK32
co-ax VMK40
co-ax VMK50
co-ax VFK15
co-ax VFK20
co-ax VFK25
co-ax VFK32
co-ax VFK40
co-ax VFK50
co-ax VMK10DR
co-ax VMK15DR
co-ax VMK20DR
co-ax VMK25DR
co-ax VMK32DR
co-ax VMK40DR
co-ax VMK50DR
co-ax VFK15DR
co-ax VFK20DR
co-ax VFK25DR
co-ax VFK32DR
co-ax VFK40DR
co-ax VFK50DR
co-ax VSV-M40
co-ax VSV-M50
co-ax VSV-F40
co-ax VSV-F50
co-ax VSV-F65
co-ax VSV-F80
co-ax VSV-F100
co-ax VSV-F125
co-ax VSV-F150
co-ax VSV-F200
co-ax VSV-F250
co-ax VSV-M40DR
co-ax VSV-M50DR
co-ax VSV-F40DR
co-ax VSV-F50DR
co-ax VSV-F65DR
co-ax VSV-F80DR
co-ax VSV-F100DR
co-ax VSV-F125DR
co-ax VSV-F150DR
co-ax FCF-K65
co-ax FCF-K80
co-ax FCF-K100
co-ax FCF-K125
co-ax FCF65
北京漢達森德國本土采購，拼箱發貨報關，德國技術，終身售后服務，貨期保證，價格公道，歡迎垂詢!如需更多信息歡迎垂詢漢達森品牌專員吳亞男。

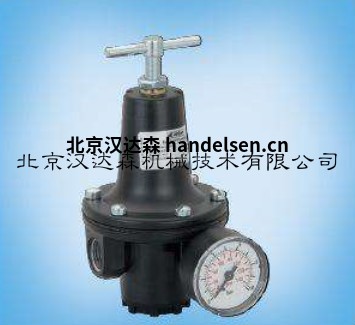

AirCom真空控制閥EVR
吳亞男
QQ：2853369884
手機：17718583804
電話：010-64714988-212
傳真：010-64714988-668
郵件：tk2@handelsen.cn |
 |
 |
客服熱線：
