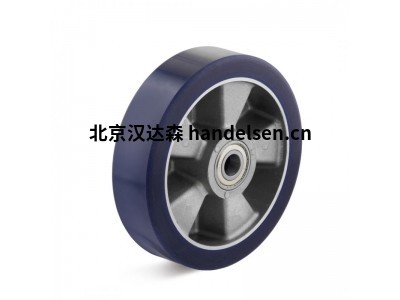

TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承80mm
輪體由聚酰胺制成，帶滾珠軸承
胎面由彈性聚氨酯制成，大約 80° Shore A，
帶圓形側翼。
該車輪系列的特點是運行安靜
、滾動阻力小。
車輪的低磨損特性不會在地板上留下任何痕跡。
彈性胎面確保更高的駕駛舒適性。
技術規格
軸孔Ø (mm)12
EAN代碼4042974038432
輪輞顏色白色的
輪圈材質聚酰胺
體重（公斤）0.2
滾珠軸承密封現在
滾珠軸承名稱6001-C3
胎面類型加冕
胎面顏色藍紫色
胎面材料彈性聚氨酯
輪轂直徑 (mm)36
輪轂長度（毫米）40
砂輪直徑 (mm)80
輪寬（毫米）35
車輪軸承滾珠軸承
輪型車輪
肖氏硬度 (°A)80
負載能力（公斤）150
貨號型號車輪直徑輪寬承載量
0014302
EPUK-100-35-40-K12100mm35mm180公斤
0014303
EPUK-125-40-50-K15125mm40mm200公斤
0014304
EPUK-150-45-60-K20150mm45mm300公斤
0014305
EPUK-160-45-60-K20160mm45mm300公斤
0014306
EPUK-200-48-60-K20200mm48mm450公斤
0016971
EPUK-250-60-75-K25250mm60mm500公斤
TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承80mm
EPUK-080-35-40-K12
TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承100mm
EPUK-100-35-40-K12
TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承125mm
EPUK-125-40-50-K15
TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承150mm
EPUK-150-45-60-K20
TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承200mm
EPUK-200-48-60-K20
TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承250mm
EPUK-250-60-75-K25
